Providing high quality services for fabricators and manufactures of all types of steel structures.
Metal Detailing Services delivers precise and reliable steel workshop drawings for fabricators and manufacturers. Led by a Design Manager with over a decade of experience, our team uses advanced technology to ensure high-quality results tailored to each project. With a strong construction and engineering background, we identify design issues early and collaborate with builders to streamline on-site work. Contact us today to schedule a consultation or learn how we can support your next project.
STEEL DETAILING SERVICES
STRUCTURAL STEEL DETAILING
Our expert team specializes in producing highly accurate and detailed drawings for all structural steel components used by fabricators and contractors. Our precise steel models support quantity take-offs, project scheduling, and the creation of comprehensive shop drawings. These models enable fabricators to efficiently manufacture steel elements through tailored fabrication drawings.
3D Modelling BIM
Our 3D BIM (Building Information Modeling) services provide intelligent, data-rich models that bring your construction projects to life before a single beam is installed. We specialize in creating accurate, detailed, and clash-free 3D models that enhance coordination, reduce errors, and streamline the entire building lifecycle—from design through construction to facility management.
Stair-Handrail Detailing
We specialize in high-precision 3D modelling and 2D detailing of stair handrails, guardrails, and safety barriers that meet the strict requirements of OSHA (Occupational Safety and Health Administration) and AISC (American Institute of Steel Construction). Our team delivers accurate, clash-free handrail models and fully coordinated shop drawings to ensure safe, code-compliant fabrication and installation.
Connection Modelling
We provide specialized steel connection modelling and detailing services that ensure structural integrity, constructability, and compliance with global standards like AISC, CISC, Eurocode, and BS. Whether it’s a simple shear connection or a complex moment frame, our 3D models and shop drawings are built for clarity, coordination, and fabrication efficiency.
Advance Bill of Material (ABM) Services
Our Advance Bill of Material (ABM) service provides detailed, itemized lists of structural and miscellaneous steel components required for fabrication—delivered early in the project lifecycle to support procurement, estimating, and production planning. With precision and clarity, our ABMs help fabricators, estimators, and project managers stay ahead of schedule and within budget.
Shop & Erection Drawings
We provide highly accurate Shop and Erection Drawings for structural and miscellaneous steel projects, ensuring seamless fabrication and flawless on-site assembly. we generate clear, code-compliant, and fabrication-ready documentation that meets the needs of fabricators, erectors, engineers, and general contractors.

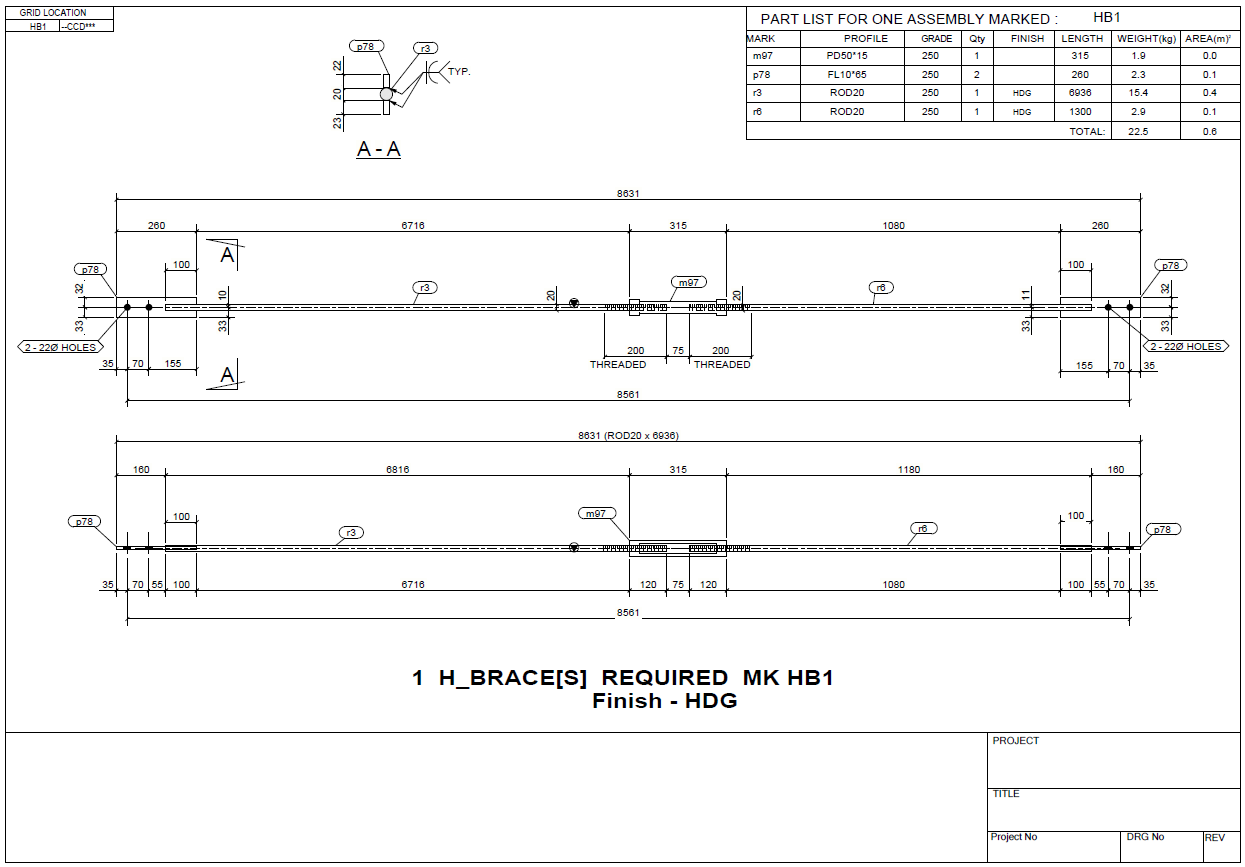

Fabrication Drawings (Shop Drawings)
- Individual part and assembly drawings for beams, columns, braces, staircases, handrails, ladders, and embeds
- Includes complete dimensional data, weld and bolt symbols, cut lengths, hole locations, and material specifications
Accurate Reinforcement Drawings for Concrete Structures
We provide specialized Rebar Detailing Services that transform structural designs into clear, buildable reinforcement drawings for concrete structures. Our team of experienced rebar detailers delivers precise bar bending schedules (BBS) and reinforcement placement drawings that meet global construction codes and help ensure safety, strength, and durability in your project.
